XD2
The High Capacity Core

  • Up to 64 stereo faders

  • Large router with matrix size of 8704×7424

  • Fully redundant operation

Mixing and routing made modular

The XD2 Core is the ideal audio routing matrix for modern broadcast environments. It features full configurability and modularity to tailor a system that fully supports your workflow.

Numerous connectivity options for Dante™, AES67/RAVENNA, MADI, AES3/EBU, Gigabit Audio, APC or analogue signals are available.

24 Faders (Stereo)

52-744X + 52-7456
1x DSP Card 52-7460

48 SUMMING BUSSES
(PGM, AUX, N-1, PFL)
30 MIX-MINUS BUSSES
170 SECONDS DELAY*
5 LOUDNESS METERS*

48 Faders (Stereo)

52-744X + 52-7456
2x DSP Card 52-7460

48 SUMMING BUSSES
(PGM, AUX, N-1, PFL)
30 MIX-MINUS BUSSES
340 SECONDS DELAY*
10 LOUDNESS METERS*

64 Faders (Stereo)

52-744X + 52-7456
4x DSP Card 52-7460

48 SUMMING BUSSES
(PGM, AUX, N-1, PFL)
30 MIX-MINUS BUSSES
680 SECONDS DELAY*
20 LOUDNESS METERS*

* With additional licence 52-8581 Enhanced DSP Processing.

All values are maximum values, availability depends on number and type of used features. Click here for detailed list of features.

Modular power

You can equip your XD2 DSP Core with up to four 52-7460 DSP modules to achive maximum processing power.

Each of these DSP modules provide 40-bit floating-point processing for fader channels, channel processing, fixed processing and summing operations. Also additional memory for channel delay and program delay are also added with each DSP module.

Redundancy options

In redundancy mode two identical XD2 Cores work in sync. While the main DSP core controls the broadcast system, the standby DSP core is always ready to take over if necessary.

Beside this DSP and controller redundancy, redundant power supply inputs are built in to provide seamless switching between power sources.

Stay in control

Advanced logic computing for control signals enables you to use the XD2 Core as a real control center for your studio. Transmitting fader starts and red light signals or managing centralised resources like codecs are just a few examples.

Third-party systems, too, can interface with DHD products via Ethernet by using Ember+ or the open DHD External Control Protocol. Or just use GPIOs or a serial connection.

XD2 Modules

XD28K Core
52-7440B
XD24K Core
52-7442B
XD2Controller
52-7456A
XDXC2 DSP Card
52-7460A
XD28K Core
52-7440B
XD24K Core
52-7442B
XD2Controller
52-7456A
XDXC2 DSP Card
52-7460A
XD28K Core
52-7440B
XD24K Core
52-7442B
XD2Controller
52-7456A
XDXC2 DSP Card
52-7460A
XD28K Core
52-7440B
XD24K Core
52-7442B
XD2Controller
52-7456A
XDXC2 DSP Card
52-7460A
XD28K Core
52-7440B
XD24K Core
52-7442B
XD2Controller
52-7456A
XDXC2 DSP Card
52-7460A
XD28K Core
52-7440B
XD24K Core
52-7442B
XD2Controller
52-7456A
XDXC2 DSP Card
52-7460A

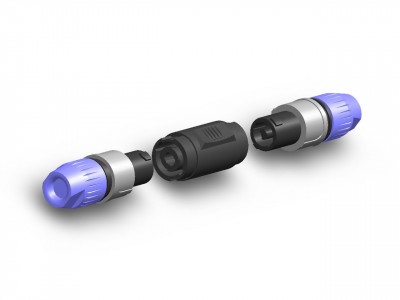

Power Cable 3m, Speakon
52-7483A
Power Cable 3m, 4-pin
52-7484A
Power Cable 3m, 4-pin, open end
52-7488A
XCPower Supply 48V / 250W
52-7496A
XCPower Supply 48V / 150W
52-7498B
Power Cable 3m, Speakon
52-7483A
Power Cable 3m, 4-pin
52-7484A
Power Cable 3m, 4-pin, open end
52-7488A
XCPower Supply 48V / 250W
52-7496A
XCPower Supply 48V / 150W
52-7498B
Power Cable 3m, Speakon
52-7483A
Power Cable 3m, 4-pin
52-7484A
Power Cable 3m, 4-pin, open end
52-7488A
XCPower Supply 48V / 250W
52-7496A
XCPower Supply 48V / 150W
52-7498B
Power Cable 3m, Speakon
52-7483A
Power Cable 3m, 4-pin
52-7484A
Power Cable 3m, 4-pin, open end
52-7488A
XCPower Supply 48V / 250W
52-7496A
XCPower Supply 48V / 150W
52-7498B
Power Cable 3m, Speakon
52-7483A
Power Cable 3m, 4-pin
52-7484A
Power Cable 3m, 4-pin, open end
52-7488A
XCPower Supply 48V / 250W
52-7496A
XCPower Supply 48V / 150W
52-7498B
Power Cable 3m, Speakon
52-7483A
Power Cable 3m, 4-pin
52-7484A
Power Cable 3m, 4-pin, open end
52-7488A
XCPower Supply 48V / 250W
52-7496A
XCPower Supply 48V / 150W
52-7498B
Headphone Potentiometer Box
52-7292A
XC19″ Adapterpanel, XLR
52-7491A
XC19″ Adapterpanel, flat
52-7492A
XCblank panel
52-7493A
XCtable mounting kit
52-7494A
XC19″ Adapterpanel, 10 slots
52-7495A
Headphone Potentiometer Box
52-7292A
XC19″ Adapterpanel, XLR
52-7491A
XC19″ Adapterpanel, flat
52-7492A
XCblank panel
52-7493A
XCtable mounting kit
52-7494A
XC19″ Adapterpanel, 10 slots
52-7495A
Headphone Potentiometer Box
52-7292A
XC19″ Adapterpanel, XLR
52-7491A
XC19″ Adapterpanel, flat
52-7492A
XCblank panel
52-7493A
XCtable mounting kit
52-7494A
XC19″ Adapterpanel, 10 slots
52-7495A
Headphone Potentiometer Box
52-7292A
XC19″ Adapterpanel, XLR
52-7491A
XC19″ Adapterpanel, flat
52-7492A
XCblank panel
52-7493A
XCtable mounting kit
52-7494A
XC19″ Adapterpanel, 10 slots
52-7495A
Headphone Potentiometer Box
52-7292A
XC19″ Adapterpanel, XLR
52-7491A
XC19″ Adapterpanel, flat
52-7492A
XCblank panel
52-7493A
XCtable mounting kit
52-7494A
XC19″ Adapterpanel, 10 slots
52-7495A
Headphone Potentiometer Box
52-7292A
XC19″ Adapterpanel, XLR
52-7491A
XC19″ Adapterpanel, flat
52-7492A
XCblank panel
52-7493A
XCtable mounting kit
52-7494A
XC19″ Adapterpanel, 10 slots
52-7495A
