TX2
The Touch
of Broadcast

  • Flat on your desk

  • Great on features

  • Just 1 RJ45

Modules
Brochure

The touch of broadcast

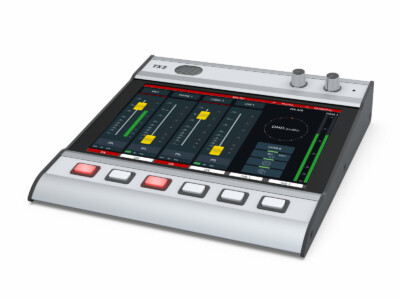

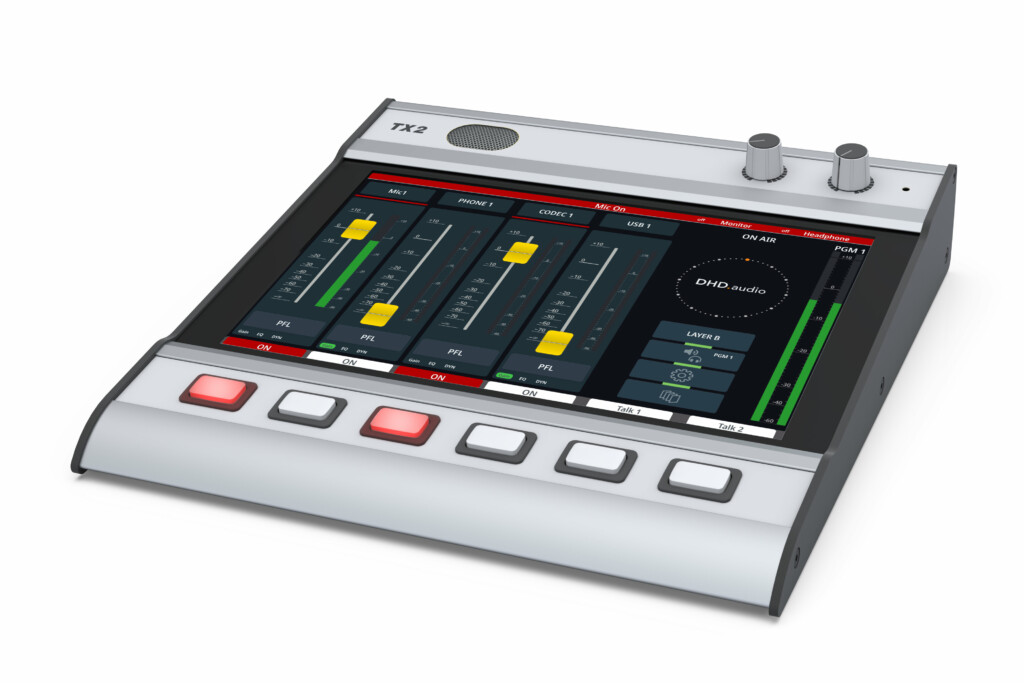

The DHD TX2 is a multitouch mixing console with an intuitive control interface for daily operation at news desks, as co-host panels, in edit suites and in SNG vehicles. Its flat table-top design includes a 10.1-inch multitouch display, two assignable potentiometers and six silent multicolour hardware buttons, allowing professional audio mixing on a small footprint

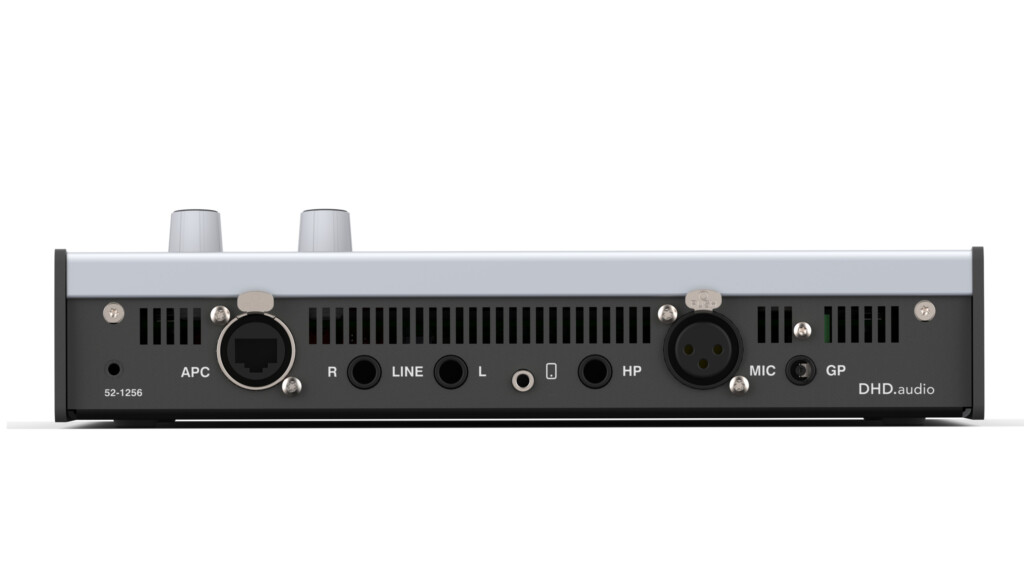

TX2 rear view

Easy connectivity

The most important connectors are available directly in the device for telephone interviews or dubbing. These include a high-quality microphone input, headphone output, stereo speaker output and a 3.5-mm mini-jack I/O. With its built-in talkback microphone and loudspeaker, the TX2 is also a perfect talkback unit or monitoring controller.

One single network cable connects the TX2 to a core processor or concentrator. The cable carries all audio and control signals, plus power, up to 100 m from the core. The TX2 is a very useful and easy way to extend any DHD system. It can be used with XC3 or XD3 cores as standalone device or as part of a larger mixing system and does not require a PC for operation

Customize your screen layout

With the Toolbox configuration software you can create your individual mixer layout that fits your workflow best. You can define number and size of faders, buttons with your required functions and, of course, peak meters to show selected signal levels.

TX2 standard view

Main View

TX2 dynamics

Dynamics

TX2 input settings

Input Settings

TX2 EQ settings

EQ Settings

TX2 simple view

Simple View

TX2 custom view

Custom View

Key features

  • Fully customisable user interface

  • 10.1-inch high-resolution multitouch capacitive IPS touch screen

  • 6 hardware buttons and 2 potentiometers for direct access to the most important functions

  • professional microphone input and headphone output

  • stereo analogue output for active speakers

  • Integrated talkback microphone and loudspeaker

  • 3.5-mm mini-jack I/O for smartphone connection

  • 1 APC port to connect to a DHD core or concentrator

  • Table-top design

TX2 Modules

TX210.1″ Multitouch Mixer
52-1256A
Power Supply 48V / 100W
52-1948B
XC3IP Core
52-7523A
