DX2 – Compact desktop mixer
A fully featured desktop mixer that delivers professional broadcast quality in a compact footprint. The DX2 combines 7.8″ multitouch displays, built-in audio I/O and motorized faders in a table-top design that fits anywhere — from edit booths and podcast studios to news desks and OB vans. Pair it with an XS3 IP Core for a complete system with Dante, USB and AES67 connectivity out of the box.
4 to 16 motorized faders with second layer
Built-in mic input, headphone and speaker outputs
7.8″ multitouch display per module
Runs on XS3 IP Core with Dante and USB audio
Small Footprint – Full Features
The new DX2 is a fully featured desktop audio mixing system designed for use wherever space is at a premium, such as video edit booths, news commentary suites, radio OB vans and podcast studios.

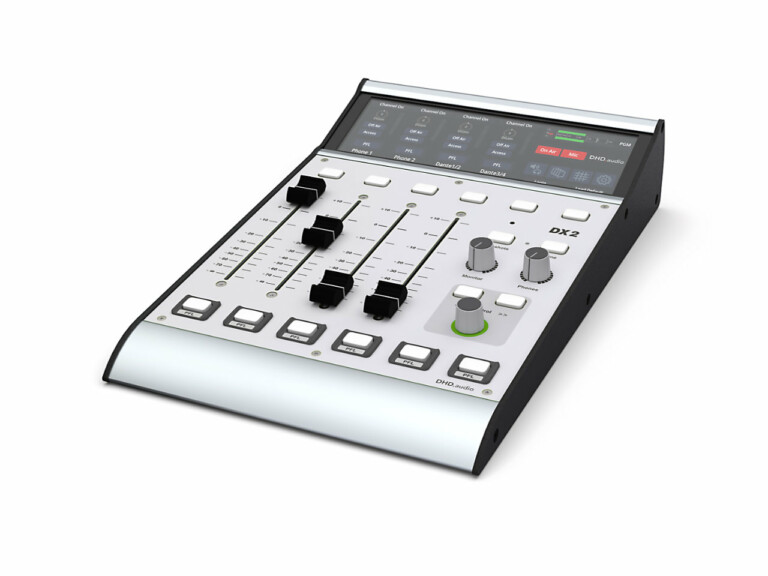

The central module (52-1214) has four faders and a central section for monitoring, talkback and central controls.

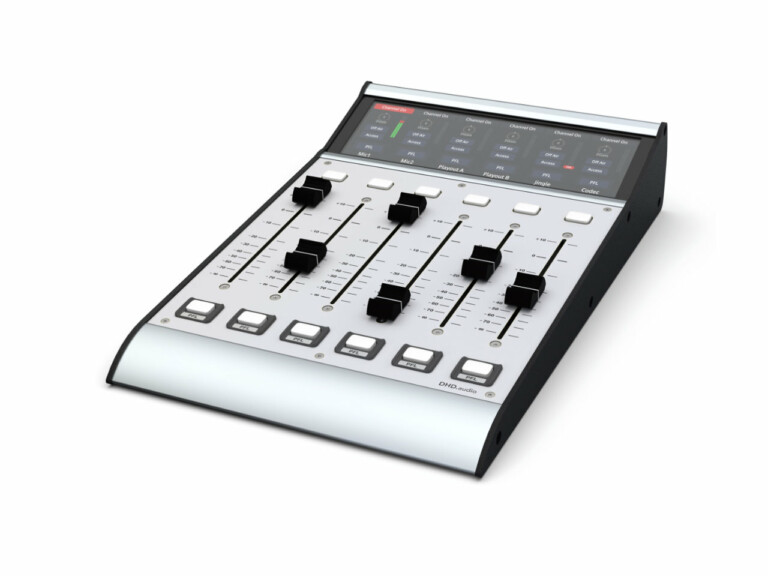

The fader modules (52-1220) feature 6 faders. All faders are professional-grade 100mm motorized faders with dust-protection and allow a second layer.
Table Top Design
Both modules feature a 7.8″ multi-touch display for faders and central control. All modules are separate table-top devices. Each fader module comes with a chaining kit for optional physical connection of modules. The DX2 modules are designed for easy maintenance and low power consumption.
Versatile Control Modules with I/Os

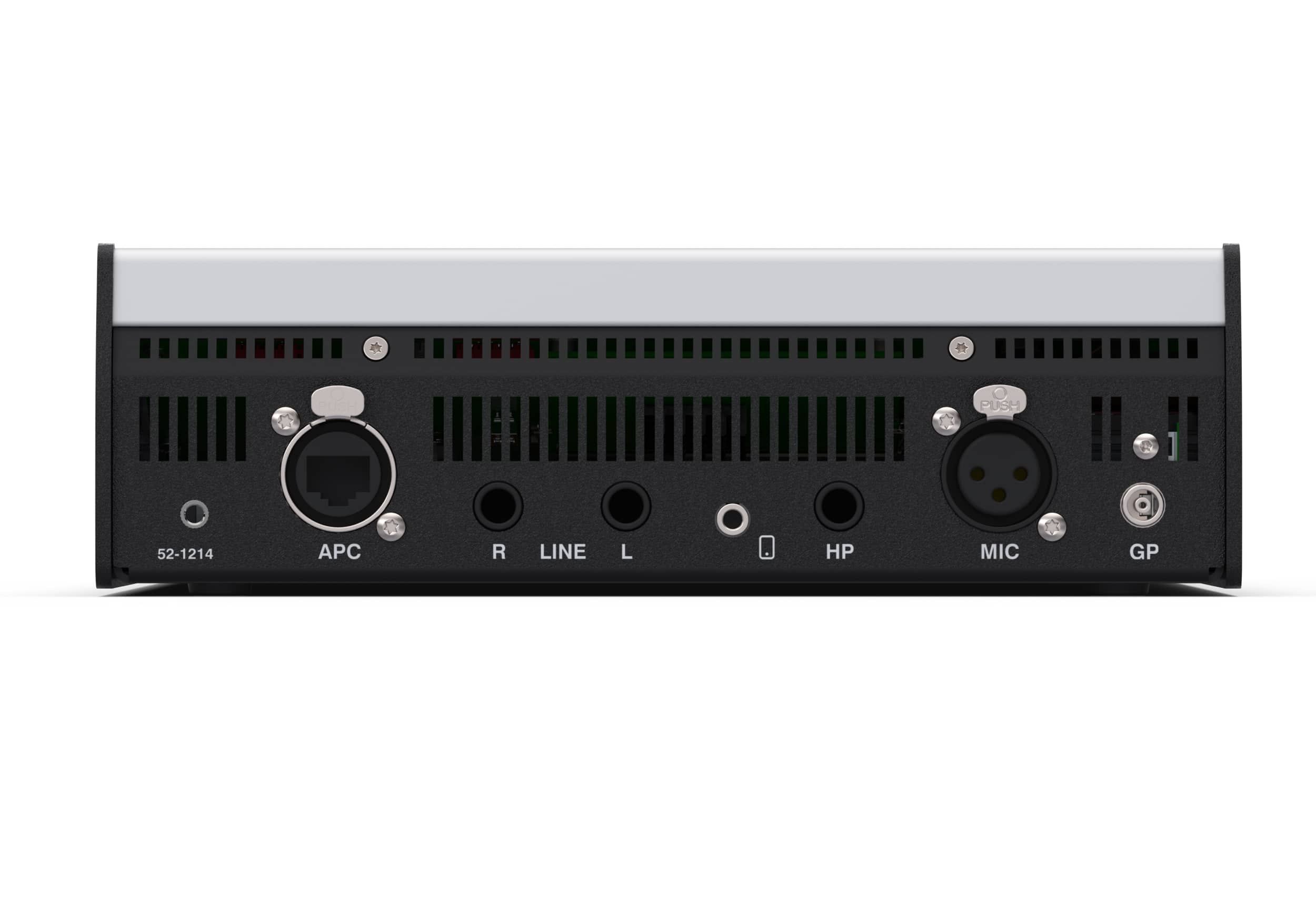

Rear panel connections of the main module comprise an APC power input, XLR microphone input, 6.3 mm jack right and left line outputs to feed active loudspeakers, a 6.3 mm jack stereo headphone output and a 3.5 mm mini jack input port allowing direct audio insertion from a smartphone. Also included is a GPO connector for microphone arms.
