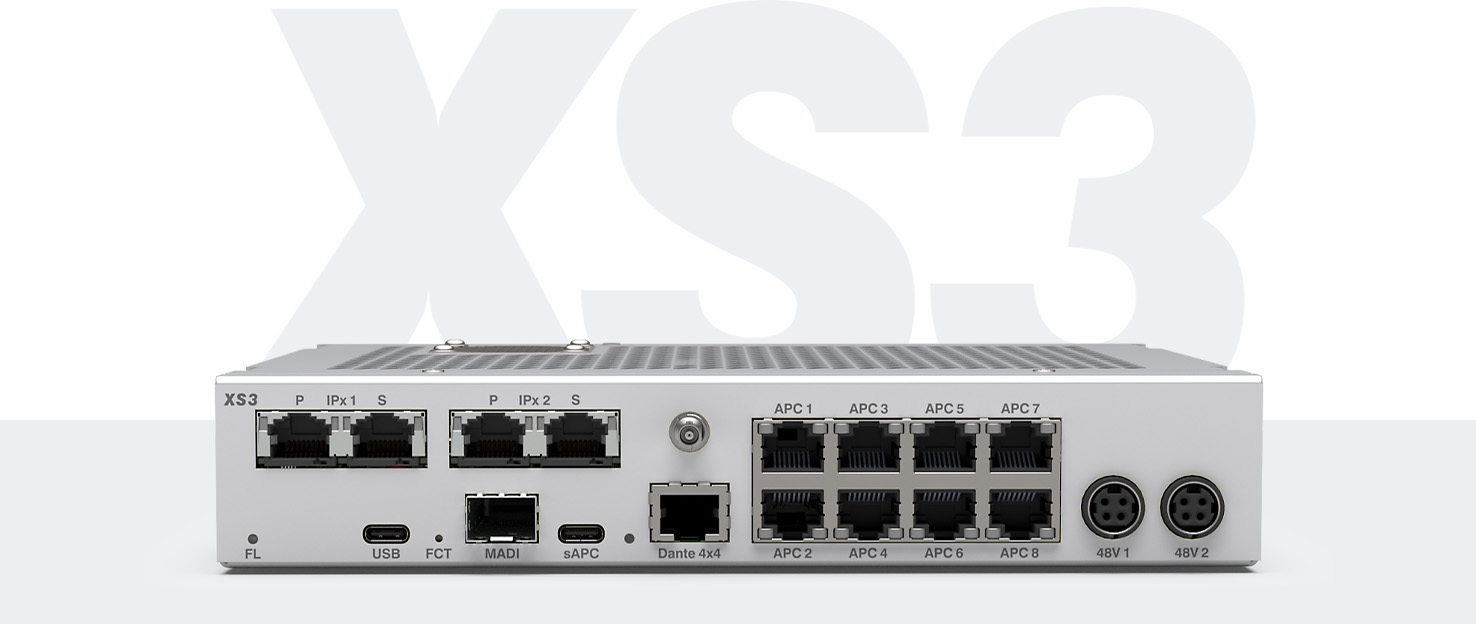

XS3
The Studio IP Core

  • Up to 20 faders
  • 11 predefined busses
  • Small and easily upgradeable

The basis for every studio setup

Occupying just 1U of rack space, the XS3 is designed to allow fast and easy configuration.
An integral setup assistant tool allows a system supervisor to choose between default settings with a choice of assignable-button functions and display layouts.

More advanced settings can be selected using DHD’s Toolbox configuration software which can be activated via an optional license.

20 Faders (Stereo)

52-7500

11 SUMMING BUSSES
(PGM + AUX + N-1 + PFL)
6 MIX-MINUS BUSSES
1 VIRTUAL MIXERS

20 Faders (Stereo)

52-7500 + 52-1950

16 SUMMING BUSSES
(PGM + AUX + N-1 + PFL)
6 MIX-MINUS BUSSES
1 VIRTUAL MIXERS

24 Faders (Stereo)

52-7500 + 52-1950 + 52-8585 + 52-8584

48 SUMMING BUSSES
(PGM + AUX + N-1 + PFL)
24 MIX-MINUS BUSSES
4 VIRTUAL MIXERS

Simplified Configuration Software and feature Upgrades

Systems equipped with a XS3 Core, will be configured with a simplified version of the Toolbox software called ‘SXConfig‘ or ‘DX2Config’. It allows to adjust a default configuration to fine-tune the system to your specific needs, including change of button functions, selection from a range of display layouts and rearranging initial fader layouts.

By adding software licences, you can increase the capabilities of the XS3. For example by adding the Extended Feature Upgrade licence (52-1950) you candesign specialised display views with the Toolbox configuration software and define the number of logic functions, peak meters or add channel delay.

Control options for all platforms

DHD provides platform independent, browser-based Web Apps, such as the Assist App to remote control a DHD device. The maintenance and monitoring of the XS3 core is possible with the System App.

Third-party systems, too, can interface with DHD products via Ethernet by using DHD control API, Ember+ or the open DHD External Control Protocol. Or just use GPIOs.

Easy cabling

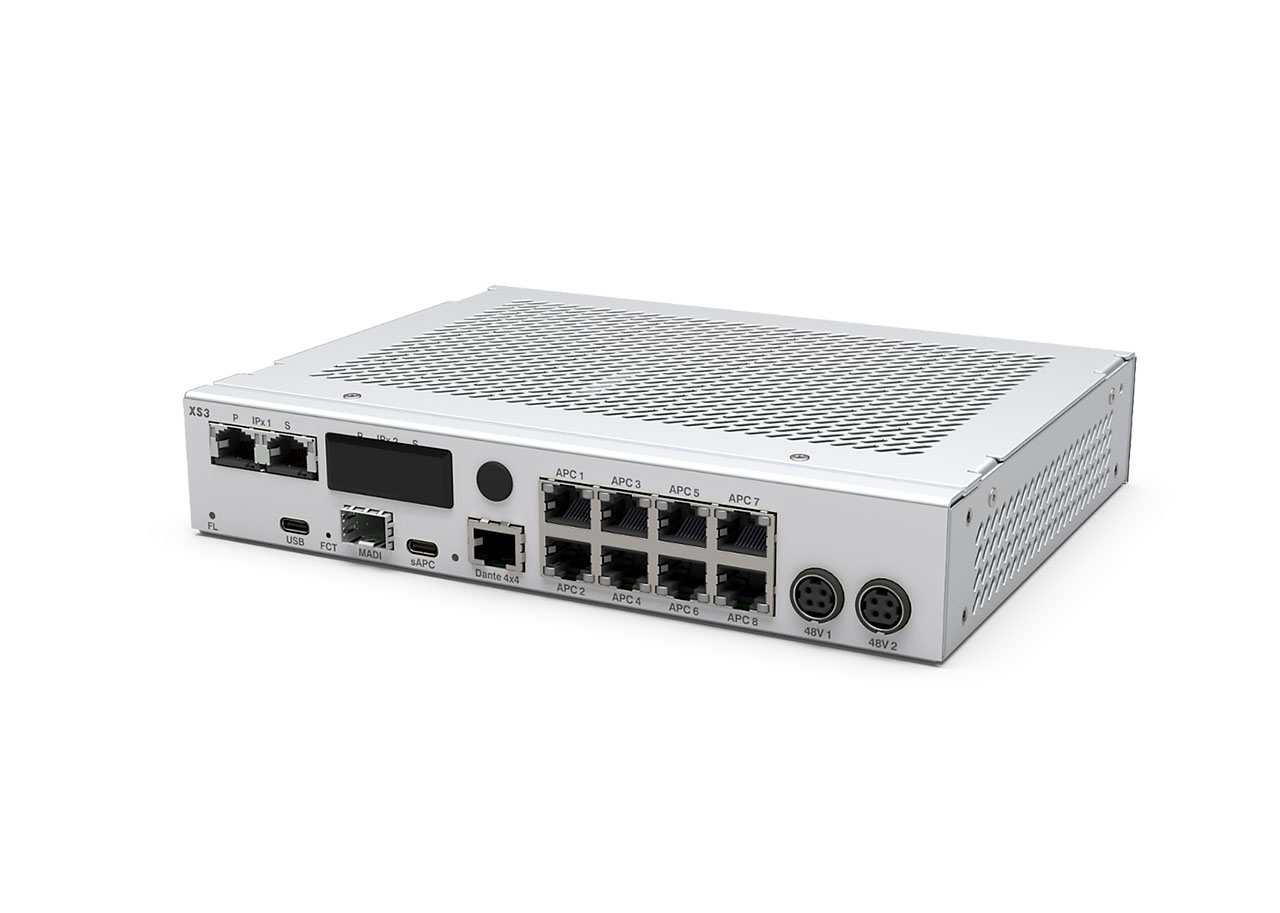

The XS3 Core provides common RJ45 ports for the connection of control modules and I/O boxes. Here, standard CAT cables are used, carrying Audio, Power and Control signals in the same cable – DHD’s APC technology.

Thus, your setup benefits from the advantages of common CAT cabling infrastructure which allows you to place I/O boxes and control modules anywhere you need them.

Small Core. Greater Options.

The 52-7500 XS3 IP Core, also included in our 10-fader SX2 bundles, comes with 8 APC ports to connect I/O boxes and control modules. It opens up a vast number of possible combinations to fine-tune your studio setup. With 16 channel USB audio and Dante 4×4 already on board, the XS3 IP Core is equipped for most applications out-of-the-box. Multi-channel options for MADI, Dante and AES67 are available as well.

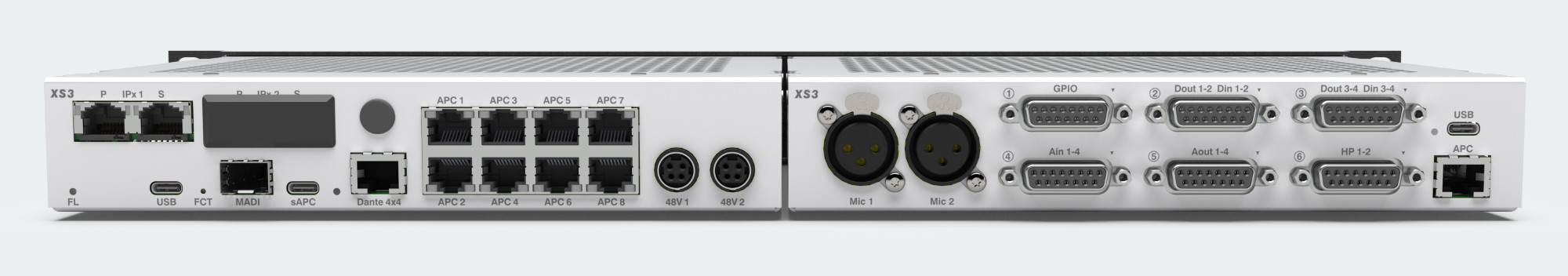

The 52-1340 XS3 Multi I/O Box perfectly complements the XS3 IP Core and adds up easy connectivity. Microphones or Line inputs can be connected to standard XLR ports. Additionally, the Multi I/O box provides Headphone outputs as well as additional in- and outputs for Line, AES3/EBU and GPIOs. All while sporting a high port density of just a half 19″ rack unit.

Interface Input ports Output ports
Microphone / Line 2
Headphones 2
Analogue Line, balanced 4 4
AES3 /EBU (stereo) 4 4
USB (stereo) 1 1
USB (multi channel) 16 16
Dante™ AoIP (4 ch) 1 1
General-purpose (GPIO) 8 8

Fine-tune your broadcast technology

Need a tailor-made solution for your broadcasting enterprise? DHD audio products are highly modular and this applies to XS3 IP Core, when ordered with one of our bundle packages:

An SX2 Bundle contains the complete hardware for a 10 fader mixing console with 2 layers for broadcast applications.
Also included is the 52-1340 Multi-I/O-Box which you can mount next to the XS3, underneath your desk or into a rack, occupying only 1 U.
Last but not least: DHD Bundle buyers also benefit from a very attractive package price.

You can add I/O modules from the complete DHD product family to extend your system as required.
