TX
The Touch
of Broadcast

  • Flat on your desk

  • Great on features

  • Just 1 RJ45

Modules
Brochure

The touch of broadcast

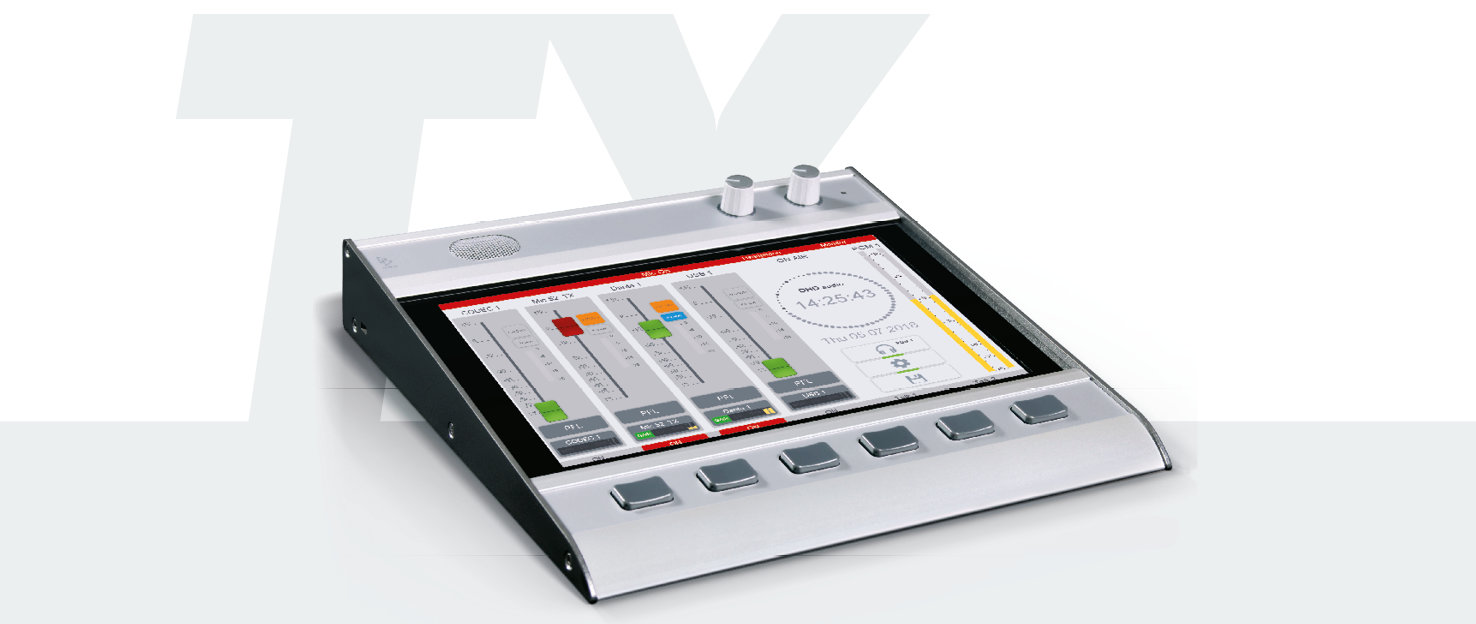

The TX is a multitouch mixing console with an intuitive control interface for daily operation at news desks, in editing suites and in SNGs.

Its flat table-top design, with a 10.1″ multitouch display, two assignable potentiometers and six hardware buttons, allows professional audio mixing on a small footprint.

The TX can be used with any of our DSP Cores as stand-alone mixing console or as extension for a larger DHD system.

Easy connectivity

With the integrated high-quality microphone input and headphone output, the most important connectors are available directly in the device for telephone interviews or dubbing.

Featuring a built-in talkback microphone and loudspeaker, the TX is also a perfect talkback unit or monitoring controller.

One single network cable connects the TX to a core or concentrator. It transmits all audio and control signals and also provides power for this device. The TX can be operated with a maximum distance of 100 m from the core.

Customize your screen layout

With the Toolbox configuration software you can create your individual mixer layout that fits your workflow best. You can define number and size of faders, buttons with your required functions and, of course, peak meters to show selected signal levels.

Main View (Bright)

Dynamics

Input Settings

EQ Settings

Snapshot View

Custom View

Key features

  • 10.1″ high-resolution multitouch display, IPS, capacitive touch screen

  • 6 hardware buttons

  • 2 hardware potentiometers

  • Professional microphone input, XLR

  • Professional headphone output, XLR/6.3 mm jack combo

  • Integrated talkback microphone and loudspeaker

  • 1 APC port to connect to a DHD Core or Concentrator

  • Slots for cable lock

  • VESA 100 hole pattern on the bottom

  • Table-top design

Ready to go with the 52/TX Bundle

The TX console is also available as bundle (52-1996). When ordering a bundle, you will benefit from a very attractive package price.

A TX Bundle includes the complete hardware for a multitouch mixing console with up to 4 faders for broadcast applications. The package contains:

The 52-1950 Extended Feature Upgrade licence is also part of the bundle. This allows individual configuration customised to your workflow.

  • 10.1″ multitouch control unit (52-1156)

  • 19″ rack unit (1U) XS2 I/O Core (52-1830)

  • 48 V power supply (52-1948)

TX Modules

TX10.1″ Multitouch Mixer
52-1156D
XS2I/O Core
52-1830B
Power Supply 48V / 100W
52-1948B
Core extended feature upgrade
52-1950
TXBundle, XS2 I/O Core
52-1996F
