RM420-111 - Digital In/Out/GPIO Module,8 ch.
Top  Previous  Next

STATUS : rot PRODUCT DISCONTINUED

Product photo

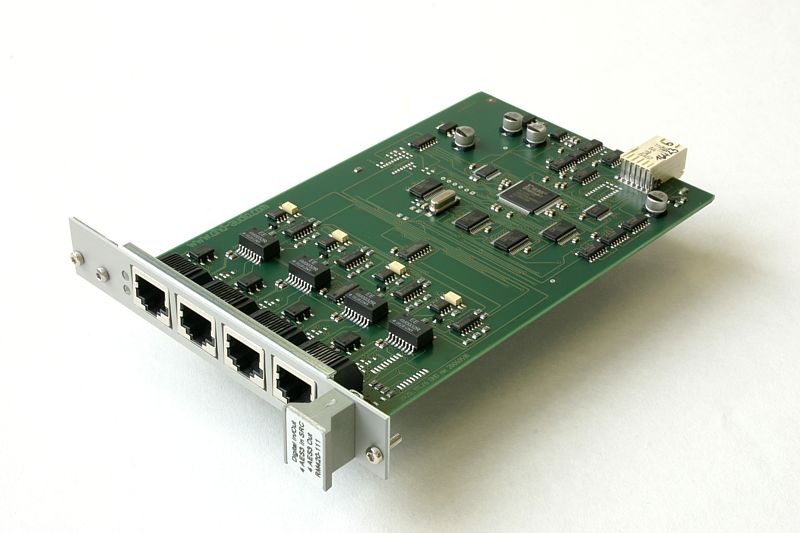

rm420-111_r6.zoom25
RM420-111 revision 6

Click on image for larger picture.

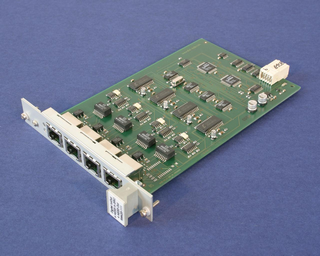

rm420_111_r2_gr.zoom25
RM420-111 revision 2

Click on image for larger picture.

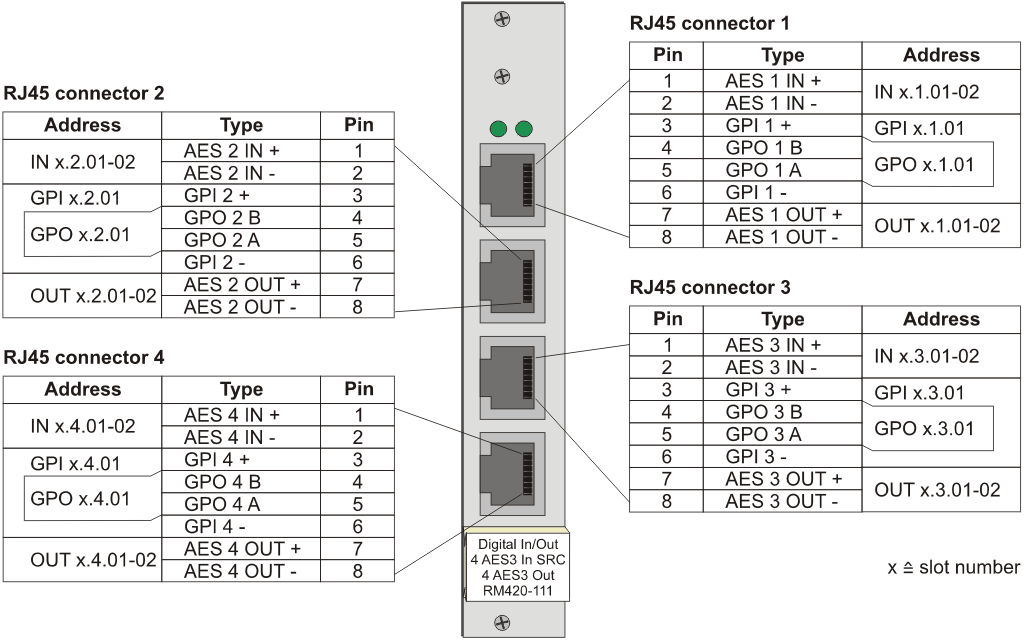

Pin assignment

rm420-111_1.zoom25
Pin assignment

Click on image for larger picture.


Wiring

rm420-111_2.zoom25
Wiring example 1

Click on image for larger picture.

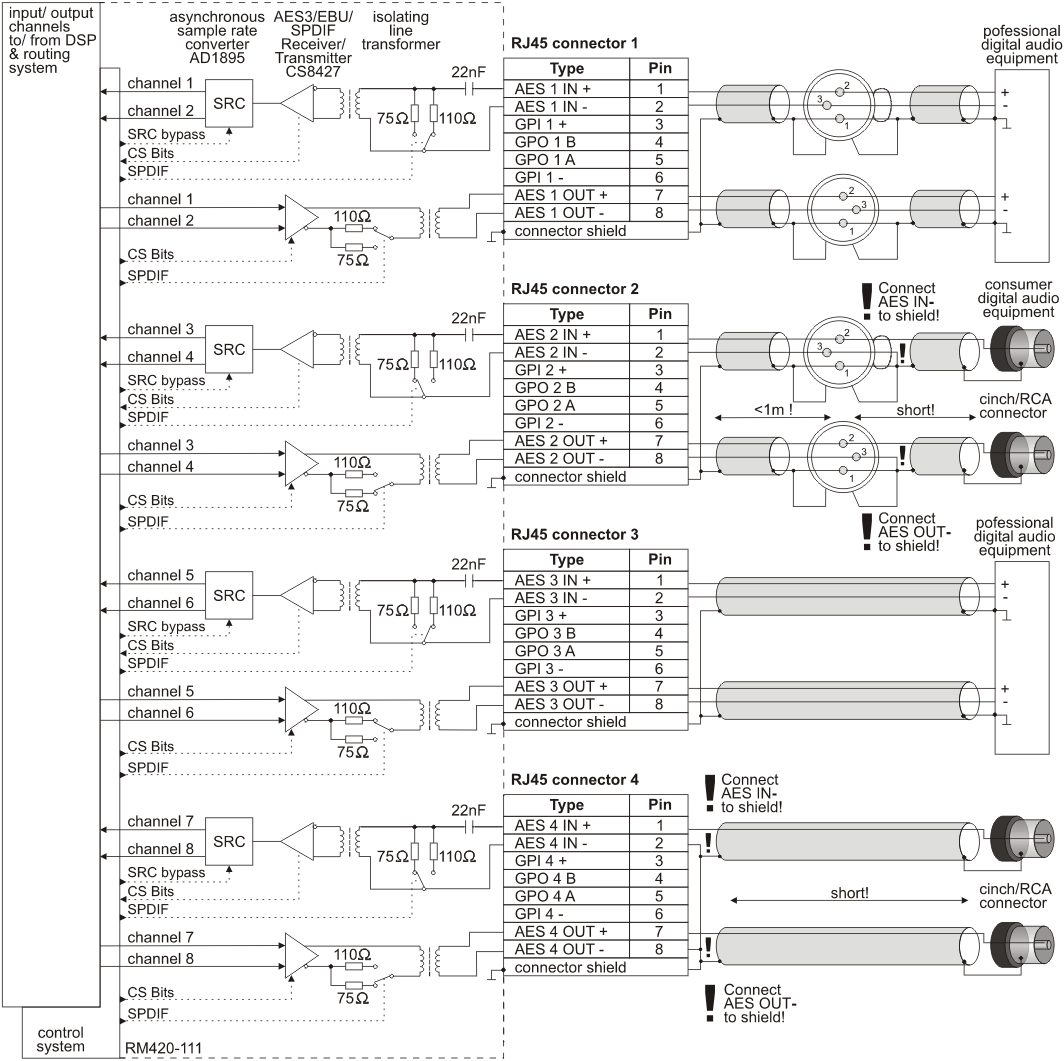

rm420-111_3.zoom25
Wiring example 2

Click on image for larger picture.

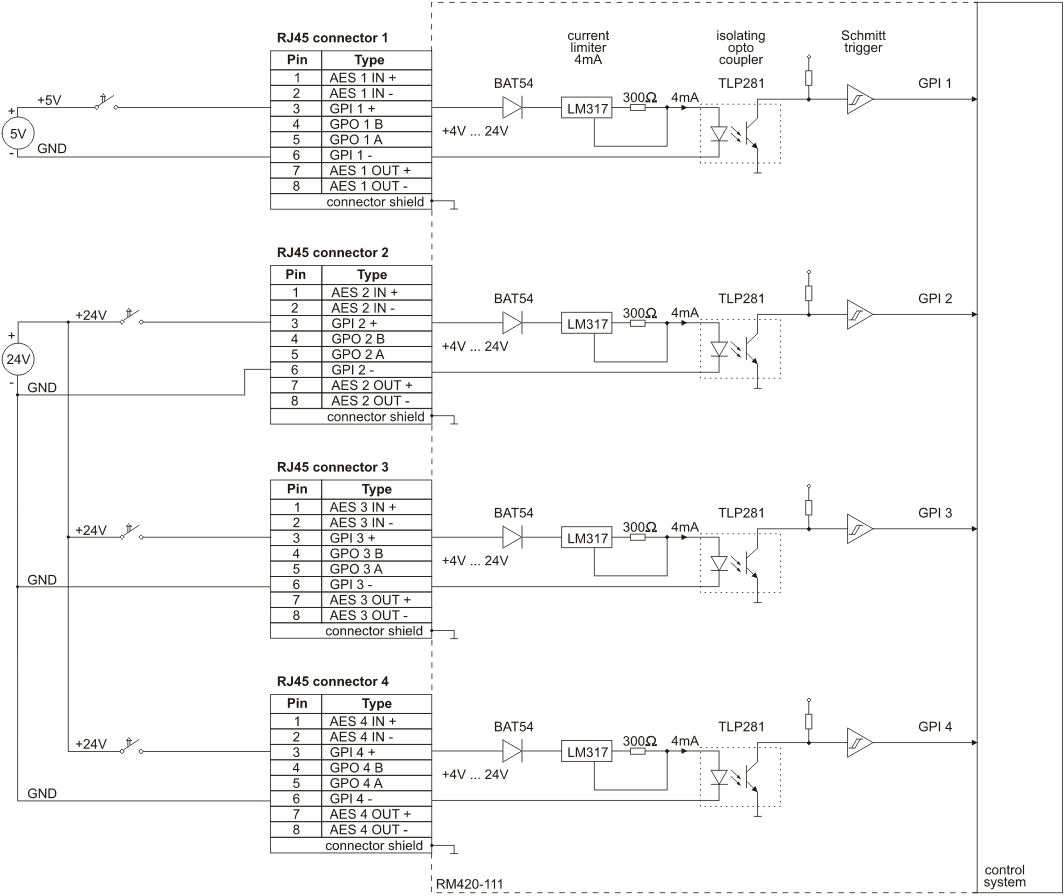

rm420-111_gpi1.zoom25
GPI wiring example 1

Click on image for larger picture.

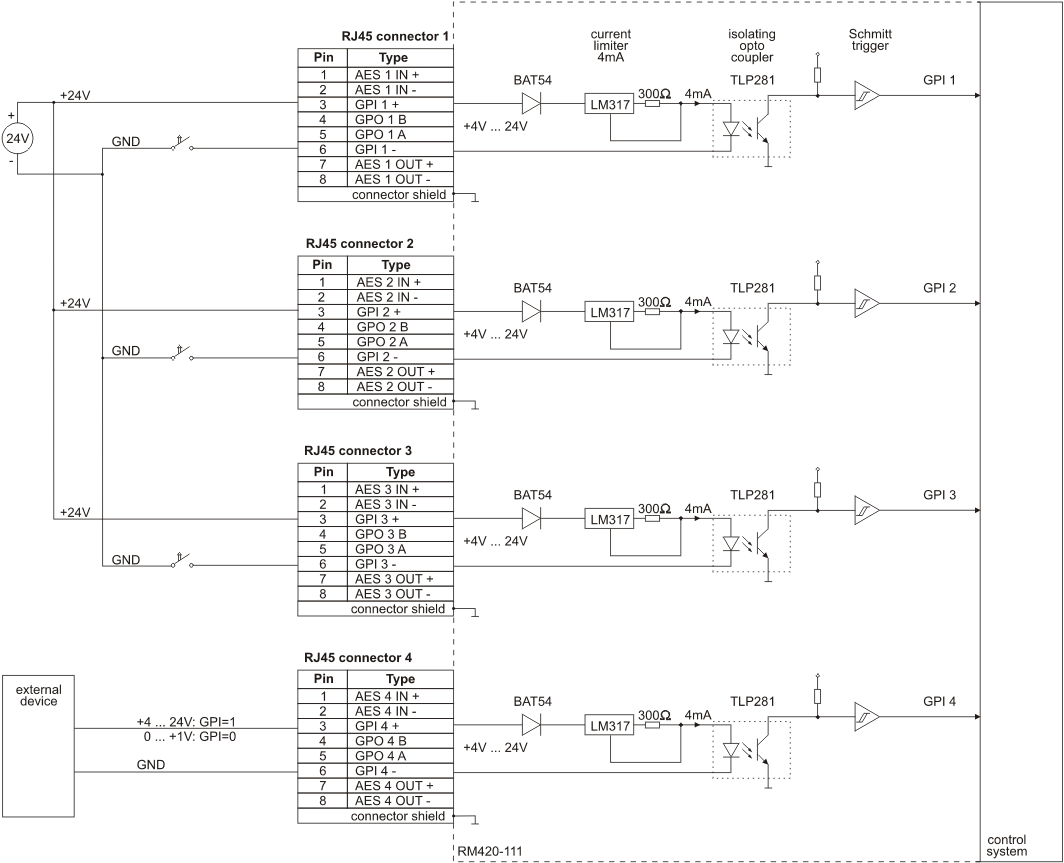

rm420-111_gpi2.zoom25
GPI wiring example 2

Click on image for larger picture.


rm420-111_gpo1.zoom25
GPO wiring example 1

Click on image for larger picture.


Download

*) To open PDF files you need Adobe's "Acrobat Reader".
This software can be downloaded from the official website of Adobe Systems Incorporated: www.adobe.com

Specifications and design are subject to change without notice.
