RM420-018 Router Control Panel
Description:
  • Router Control Panel controls 2 destinations (1 AES3/EBU signal) from the DHD Routing Matrix (DSP Frame RM4200D) via AES3/EBU channel status Bits
  • analog output, digital output and headphone output
  • analog or digital input selectable



Applications:
  • using of central sources on studios, workstations or journalist desktops
  • monitoring
Benefits:
    • simple wiring from Routing Matrix to desktop with standard CAT5 LAN cable for the AES3/EBU signal
    • no seperate control connection necessary
    • no administration - each Router Control Panel routes only its assigned 2 destinations on the Routing Matrix
    • up to 48 Router Control Panels on a DHD DSP Frame RM330-053 or up to 96 Router Control Panels on a DHD DSP Frame RM420-063

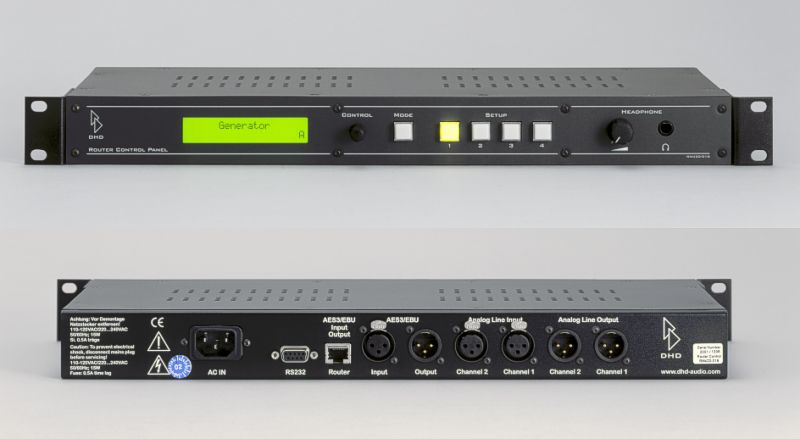

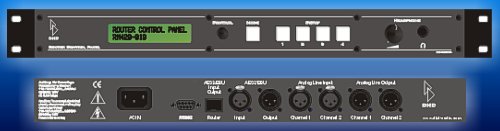

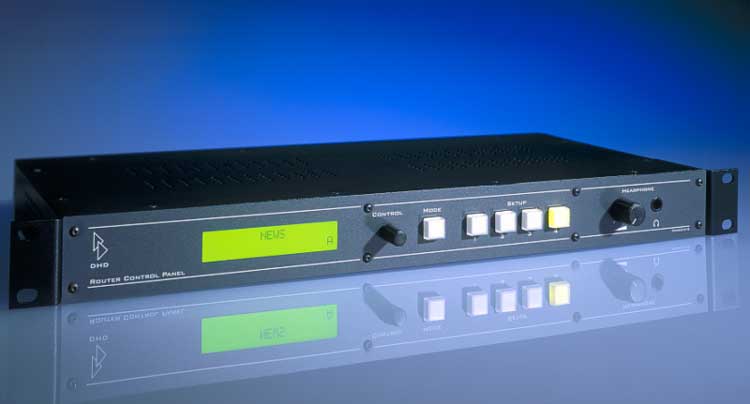

Front and Back View of Router Control Panel
Download technical details
RM3200D connection: 2 Router Control Panels to DSP Frame
PDF file * (1.156 kB)

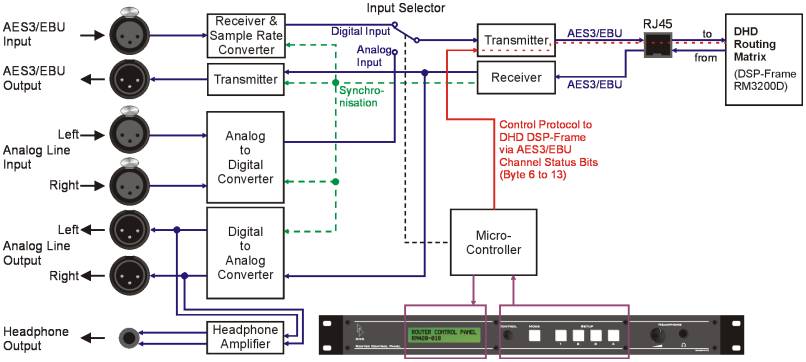

Block diagram of Router Control Panel

Click on image for larger picture.

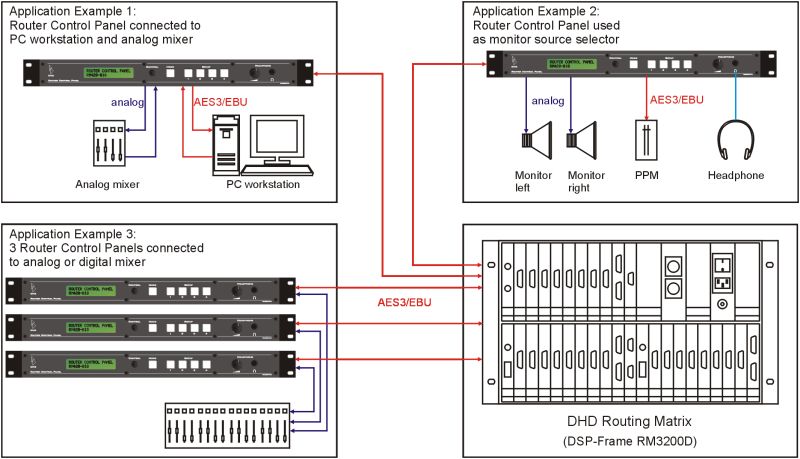

Application example of Router Control Panel

Click on image for larger picture.

Download Panel Layout (CAD drawing)
DWG file for AutoCAD R13 (88 kB)
DXF file (193 kB)
PDF file for Adobe Acrobat Reader* (53 kB)
